Single Channel Radio Frequency Rotary Joint with RF Slip Ring suit Low Temperature
RCN0103B is CENO High frequency Rotary Joint with optional channels and connector types. High-frequency rotary joints are used in continuously rotating devices to transmit high-frequency signals between stationary and rotating parts. These slip rings can handle analog signals with frequencies up to 500 MHz to over 30 GHz. This series includes single-channel and multi-channel high-frequency slip rings. For more information please contact us.Radar antennas, remote control systems, video surveillance systems, fiber optic sensing turntables.
Specification
| RCN0103B Specification |
| Channel |
Single |
| Characteristic impedance |
30Ω / 75Ω |
| Frequency range |
DC-3GHz / DC-1.5GHz |
| Insertion loss |
<1.5dB / < 3dB |
| Contact types |
SMA / BNC / MCX / F (Optional) |
| Working temperature |
-40°C~+80°C |
| VSWR, max |
<1.8 / <3 |
| VSWR, floating |
< 0.1 |
| Operating speed |
0~80rpm |
| Lead wire size & length |
Customized |
Features
1 Compact structure, long service life,
2 It can transmit analog signals and high-speed digital signals.
3 High capacity & power meet development of information superhighway companies
Applications
1 Robot
2 Radar antennas
3 Remote control systems
4 Video surveillance systems
5 FORJs sensing turntables
Optional
1 Channels, Connector type
2 Frequency range
3 Contact / Housing Materials
4 Protection grade
5 Working speed & temperature

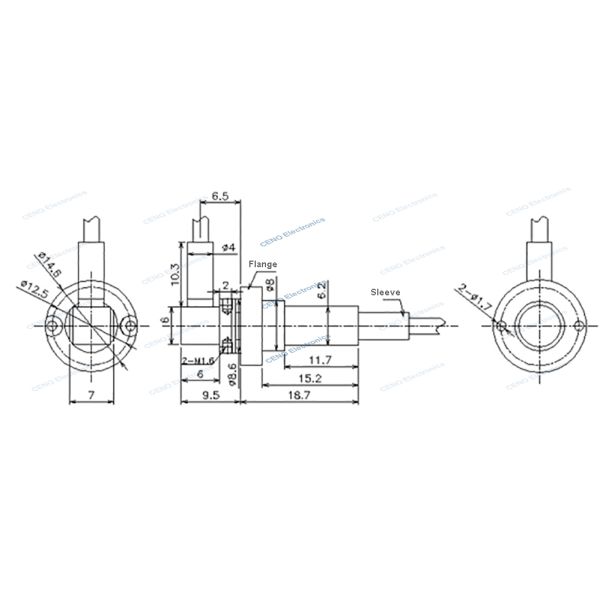

Outline drawing
Why with CENO
CENO is one technologically company in slip ring field who engages research and development,manufacturing and sales.We have advanced equipment and high precision test instruments to ensure products quality and reliable performance.Facility area covers 3000 square meters and located in Shenzhen China.
Certification
ISO9001,CE,RoHS,UL,Explosion-proof
CENO Advantage
Member in engineering team have more than 10 years experience in slip ring's field.Operators work on critical procedure are all qualified by internal training.
Service CENO provides
24 hours,7days consultant service.
Mass and customized production.
Solution offerring for 360° rotation system.
Welcome to consult us with your requests for any 360° rotation system.We will provide one stop service to you timely respond your inquiries.
